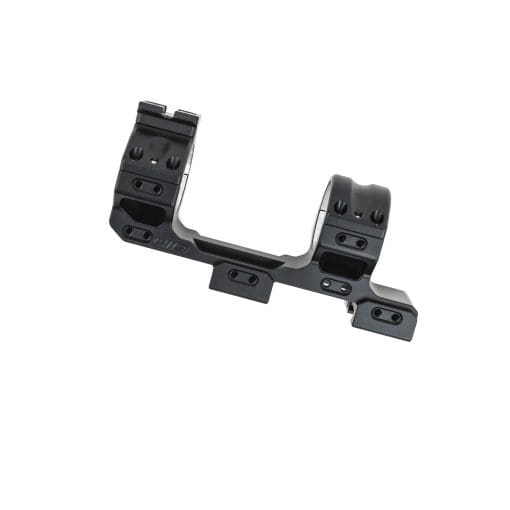

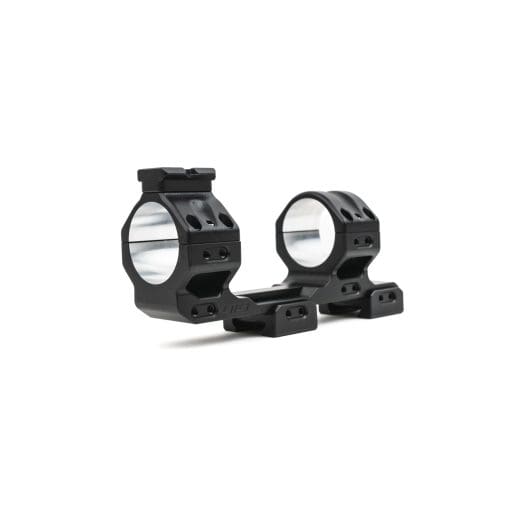

Area 419 Cantilevered Tactical One-Piece Scope Mount
$350.00

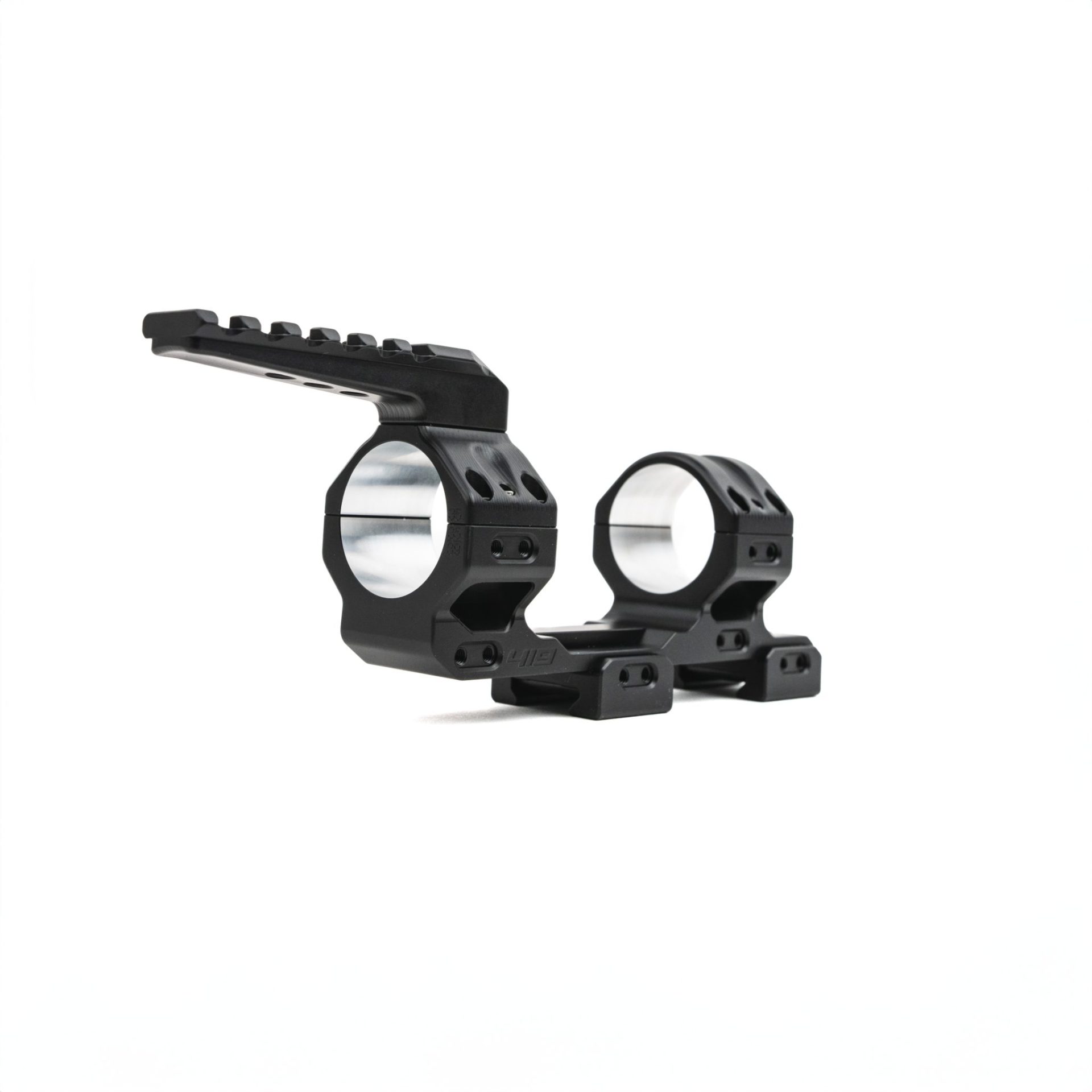

These mounts come with a small pic section on the front cap. For an extended Diving Board mount, CLICK HERE

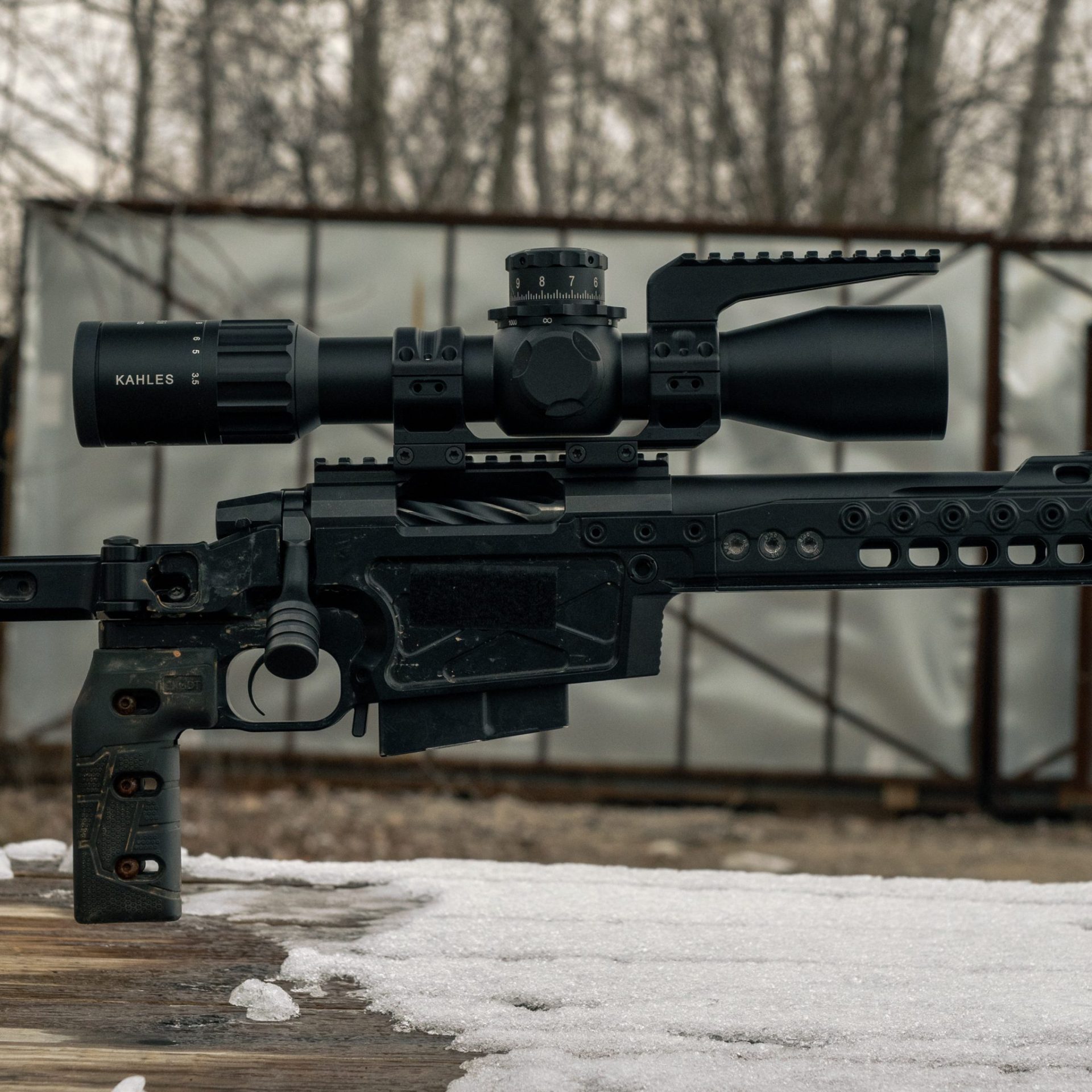

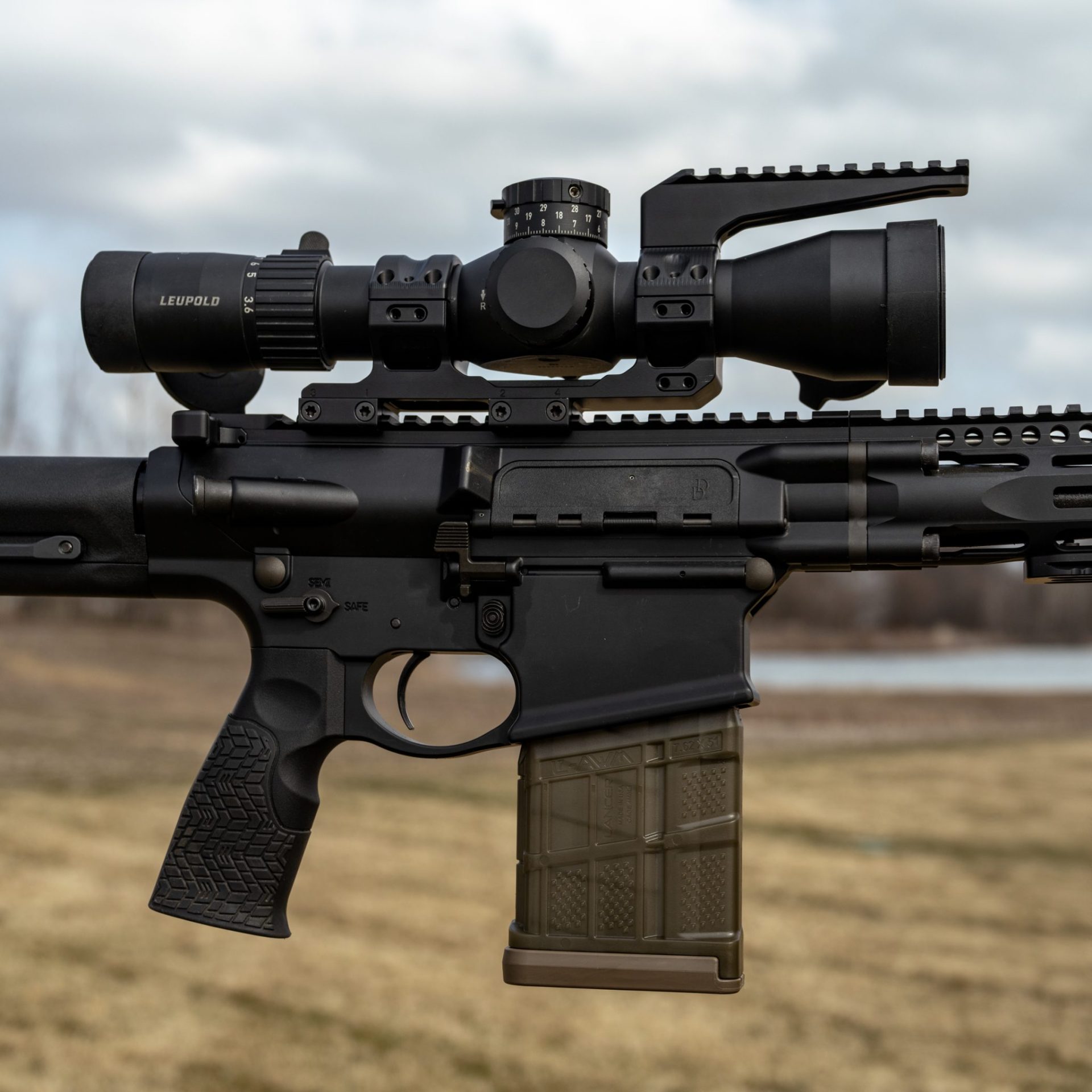

NOTE: All 1.34″ (34mm) height mounts are a mid-cantilever, meant for less offset and use on bolt-action platforms. All 1.54″ (39mm) height mounts are a more traditional AR-style cantilever. Please select the option you would like to order to see the specific mount or look at the below diagrams.
Through a process with no equal, we’re bringing you a mount with no equal.
When we set out to make the perfect scope mount, we knew what we needed to make something that was reliable and consistent at a degree you won’t find anywhere else on the market. This led us down a rabbit-hole, ultimately arriving on a process that gets you final-bore matched rings, with raw aluminum internals, for a grip on your optic that is more reliable and more true than anything else made – as well as an incredible amount of robustness without adding unnecessary weight.
Like most mounts, these begin as separate parts. We are making the bases and caps in batches. While many will make these parts, send them to anodize, and then just assemble, we produce around the extra steps. Once these parts return from anodize, they are fully assembled, placed back into specially produced rail fixtures, with the caps torqued to spec over specially made spacers (to give the rings space to torque down on the optic), and final-bored as sets in our world-class machining centers. Mounts are then brought off the machine in sets, QC’d and packaged, ensuring that you receive a mount that was finished perfectly.
Is it overkill? Probably. But we think it’s the right way. So that’s what we are going to do.
KEY FEATURES
- CNC Milled in America from American 7075 Aluminum
- Raw aluminum, precision bored scope contact surfaces for maximum grip
- Final-bored in sets, and never fully disassembled after boring
- 8-9oz per mount, depending on model, balancing weight management and robustness
- Multiple accessory mounting points
- Separate rail clamping bars for maximum grab on the pic rail
- Inset clamping feet, allowing for maximum mounting adjustment and pic rail utility
- Steel guide pins between base and caps, aiding in alignment
- Custom nitrided stainless hardware

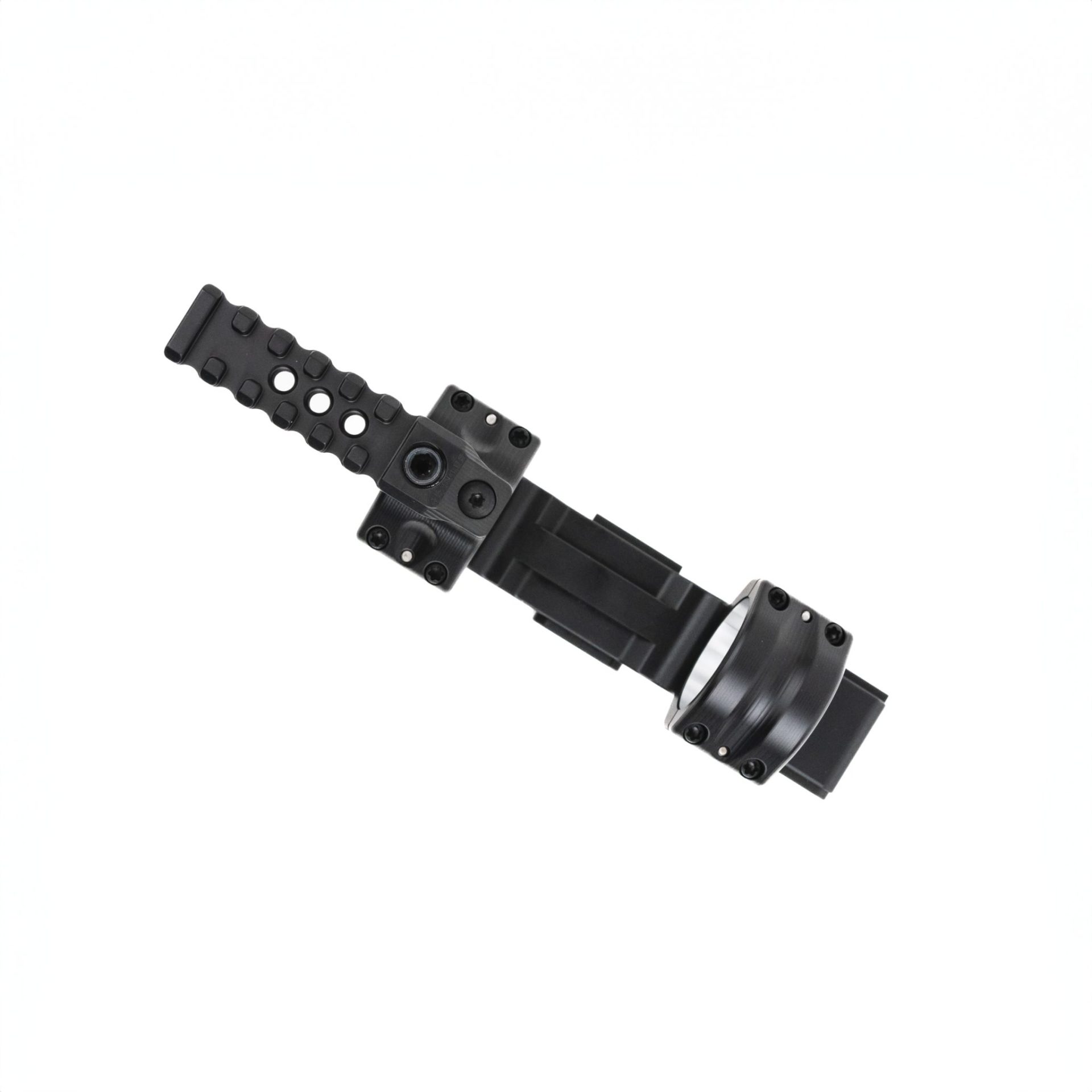

- Patent-Pending ultra-rigid and repeatable top accessory attachment – attach our Tactical Diving Board.
Want information and access to the product before everyone else? Head to our Patreon page [HERE] and join Team Area 419
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 9.5 × 5.8 × 2.8 in |
| Tube Diameter | 30mm, 34mm, 35mm, 36mm |
| Height | 34mm (1.34"), 39mm (1.54") |
| Cant | 0 MOA, 20 MOA (5.8 MIL) |
9 reviews for Area 419 Cantilevered Tactical One-Piece Scope Mount
Related products
Derek C. (verified owner) –
This is the nicest scope mount I have ever used. Mounting the scope was easy and looks great.
Steve (verified owner) –
Very well made mount, nicely finished and packaged..more than happy with this purchase…
Drew D. (verified owner) –

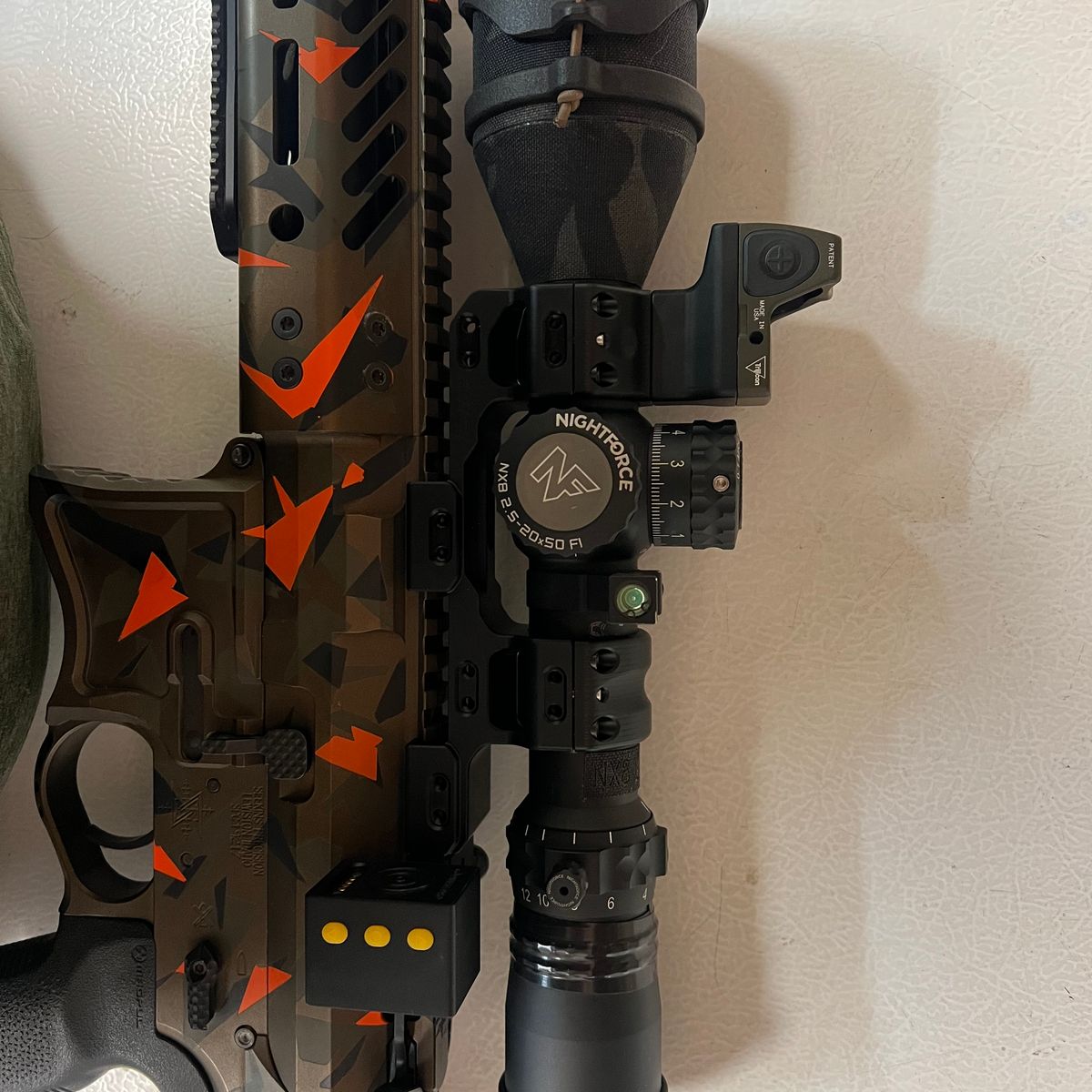

Beautiful and an absolute beast. Thing grips like a monster. I didn’t even have the caps all the way finger tight and could barely move the scope. I used a badger dead level along with a send it level mounted to the 419 mount which both showed perfectly level. From there I leveled the mount to the scopes base (bought the 20MOA version so leveled to the mount just to be safe, don’t want elevation turning into windage..), then I set up a plumb bob and when the send it level attached to the mount showed it was perfectly level, it lined up perfectly with the plumb bob. This process verified the mount and its attachment surfaces were machined perfectly. Won’t use any other brand mount from here on out, 419 does it right.
Halfdollar86 –

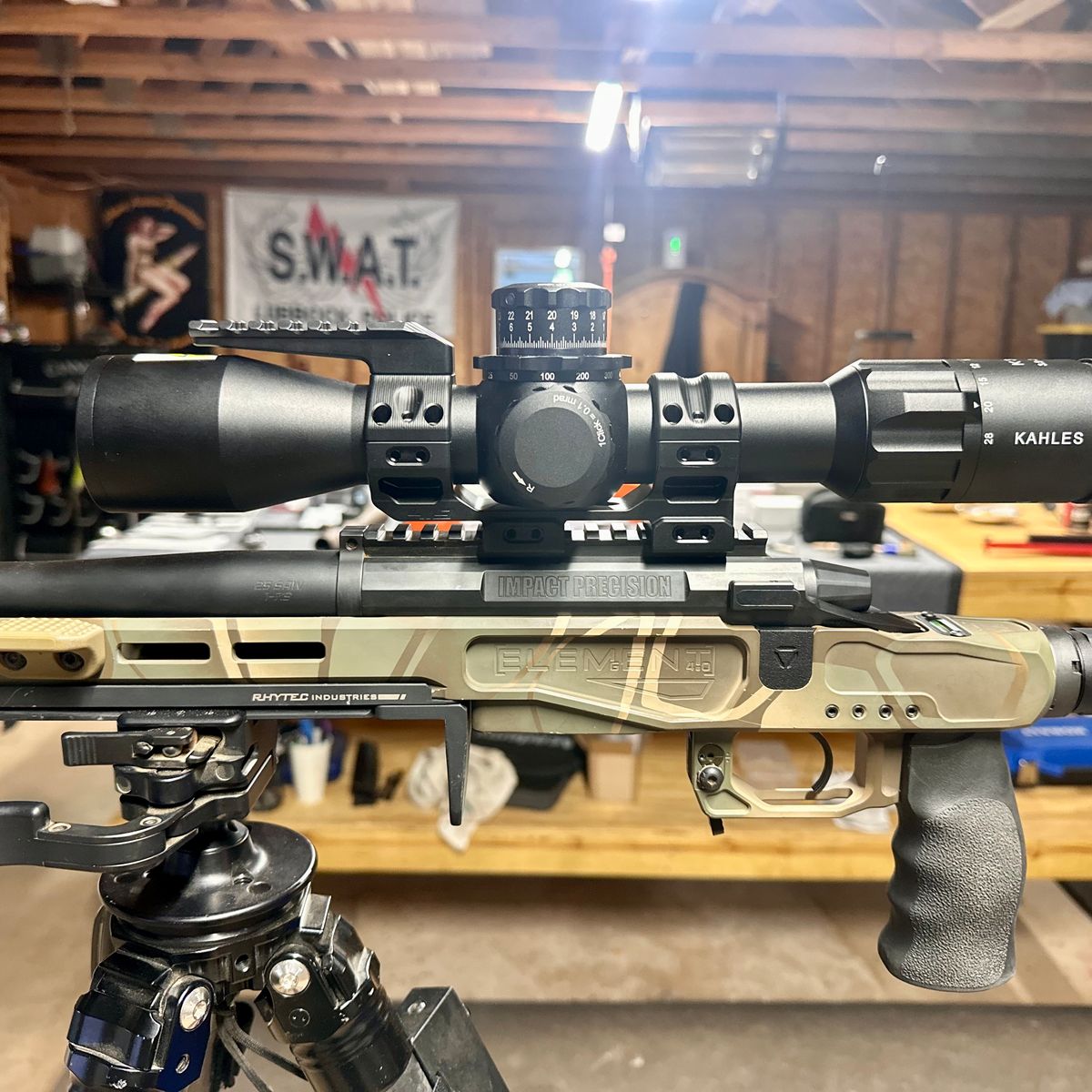

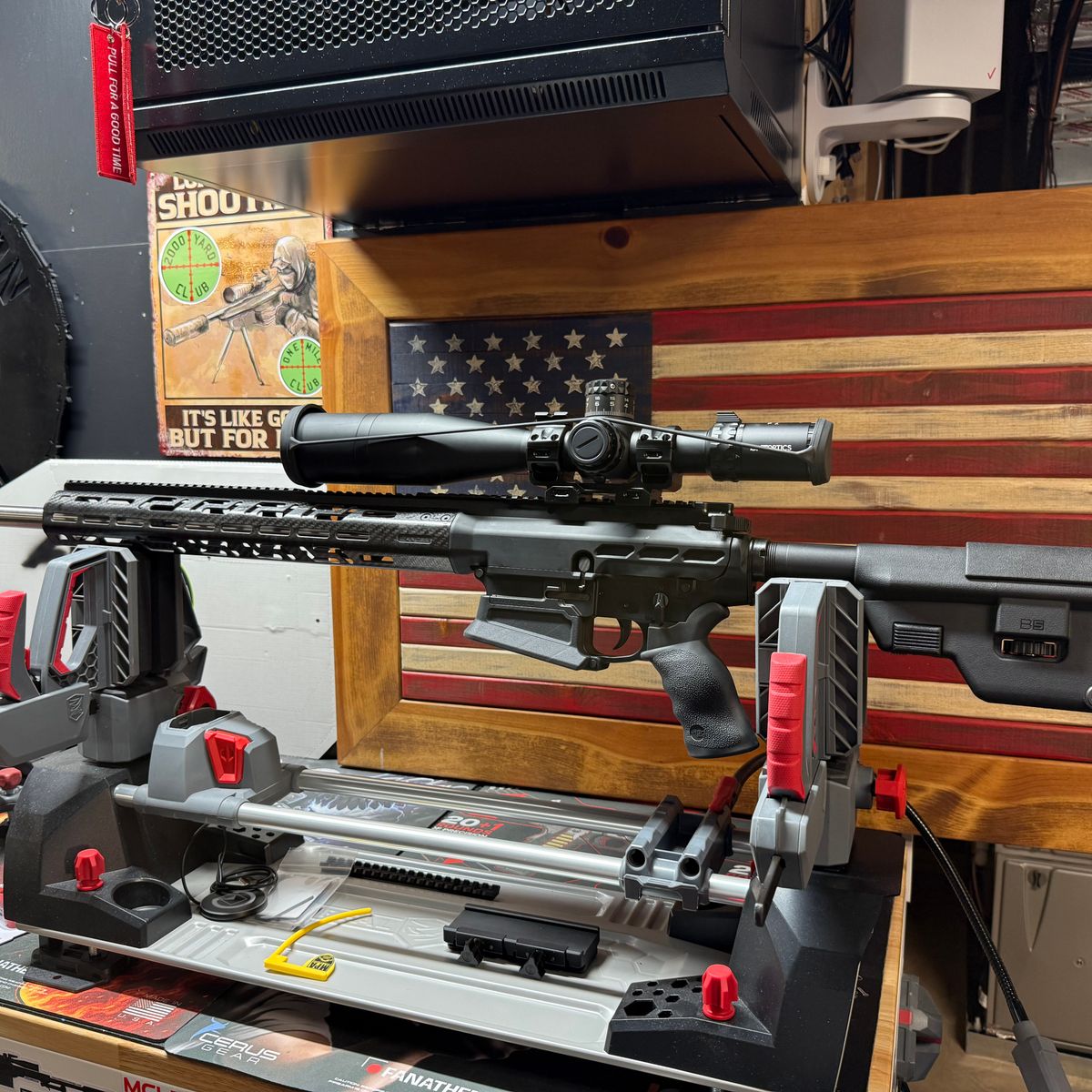

This is a great mount (mid cantilever) for the Kahles 3-28. I have it mounted on an Impact 737. It was necessary that I put the optic all the way towards the front of the rail for proper eye relief (for me). It would be way too close for comfort using Rings. It may even prevent my parallax from being able to spin.
Anonymous (verified owner) –
I have bought many one piece mounts and this one beats them all. It is precise and the machining is nothing but beautiful.
Zachary Pedersen (verified owner) –
Great looking mount. The fit and finish of it are amazing.
Kip (verified owner) –
Work of art! This mount is absolutely amazing!
James Tulip (verified owner) –
Rock solid mount. They took all the steps needed to make an awesome mount.
Tony A. (verified owner) –
Awesome product
