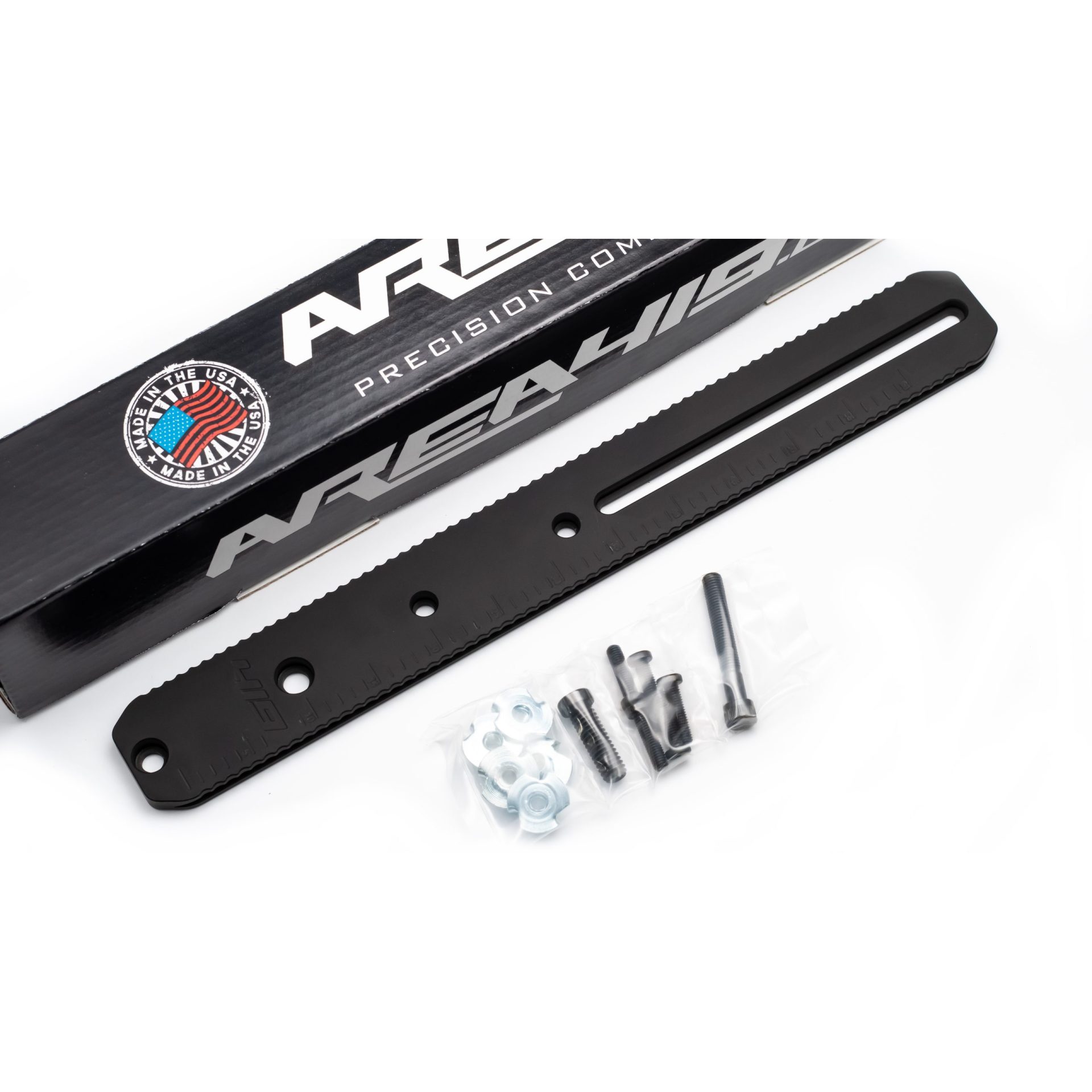

ARCALOCK 12″ Universal Dovetail Rail
$100.00
**Rear Fixed Barricade stop not included, check it out HERE!
MLOK Hardware not included.
Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure.

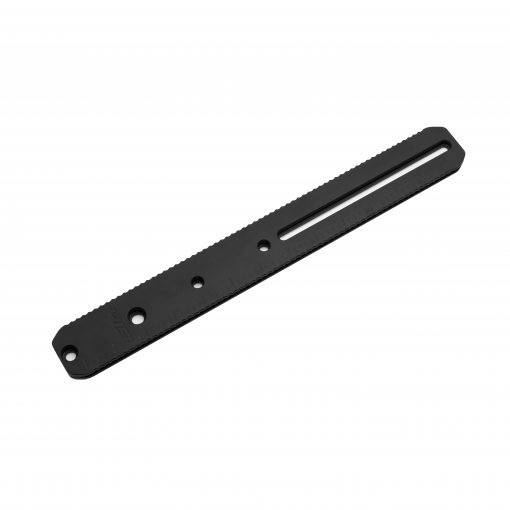

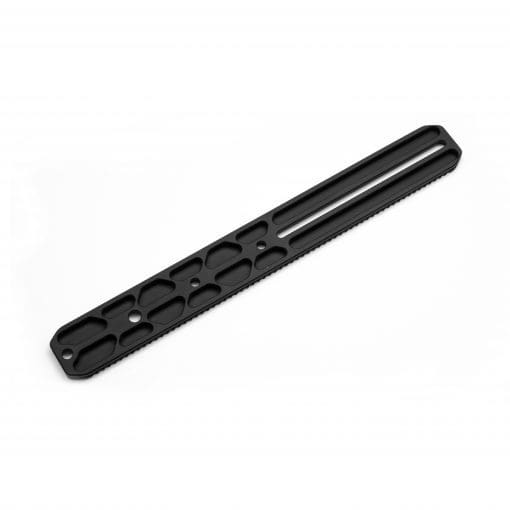

Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp*
Rail Features:

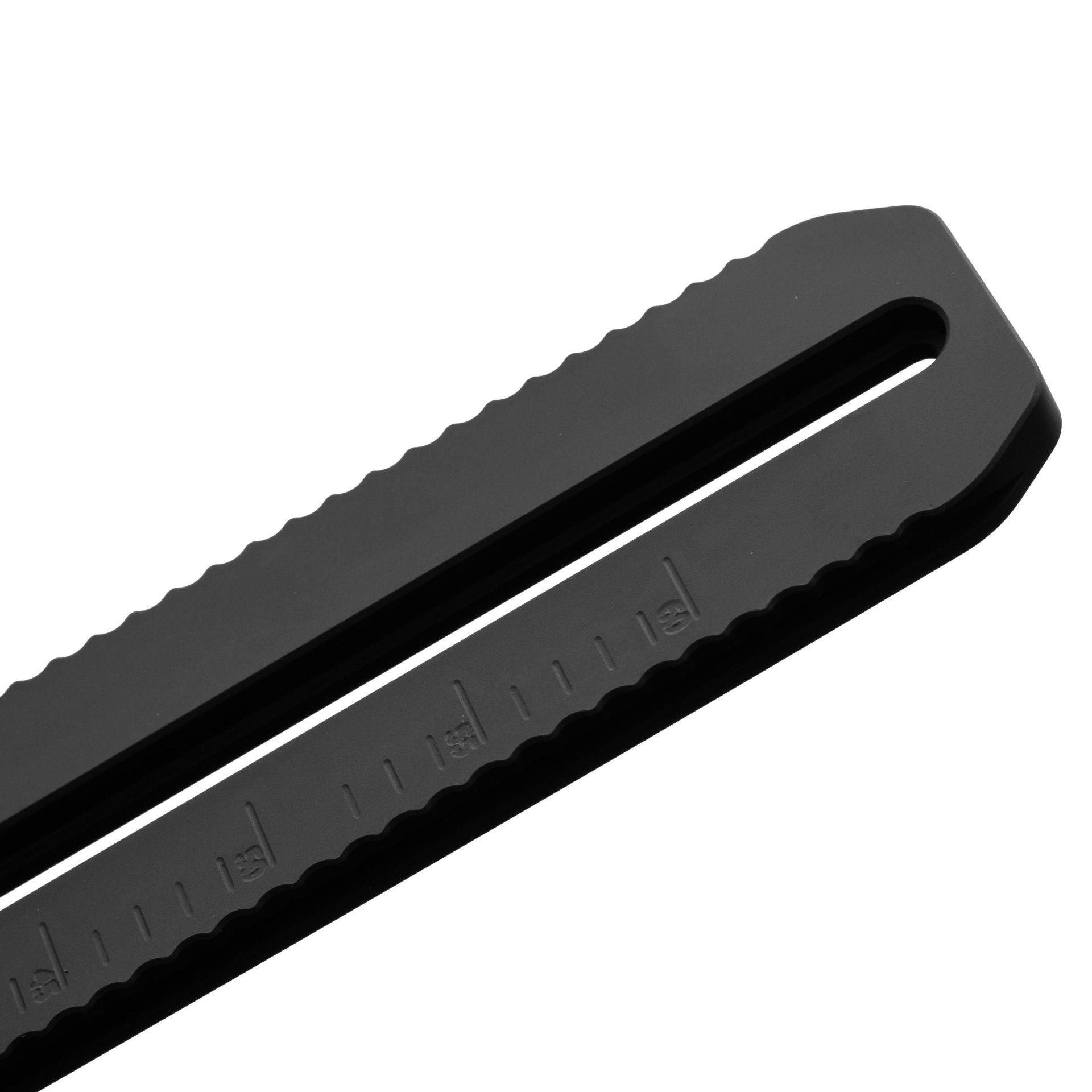

– Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands.
– Rail is backwards compatible with standard Arca accessories, but will not be locking without our clamp
– Rail is 12″ long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 4.1oz
– Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work

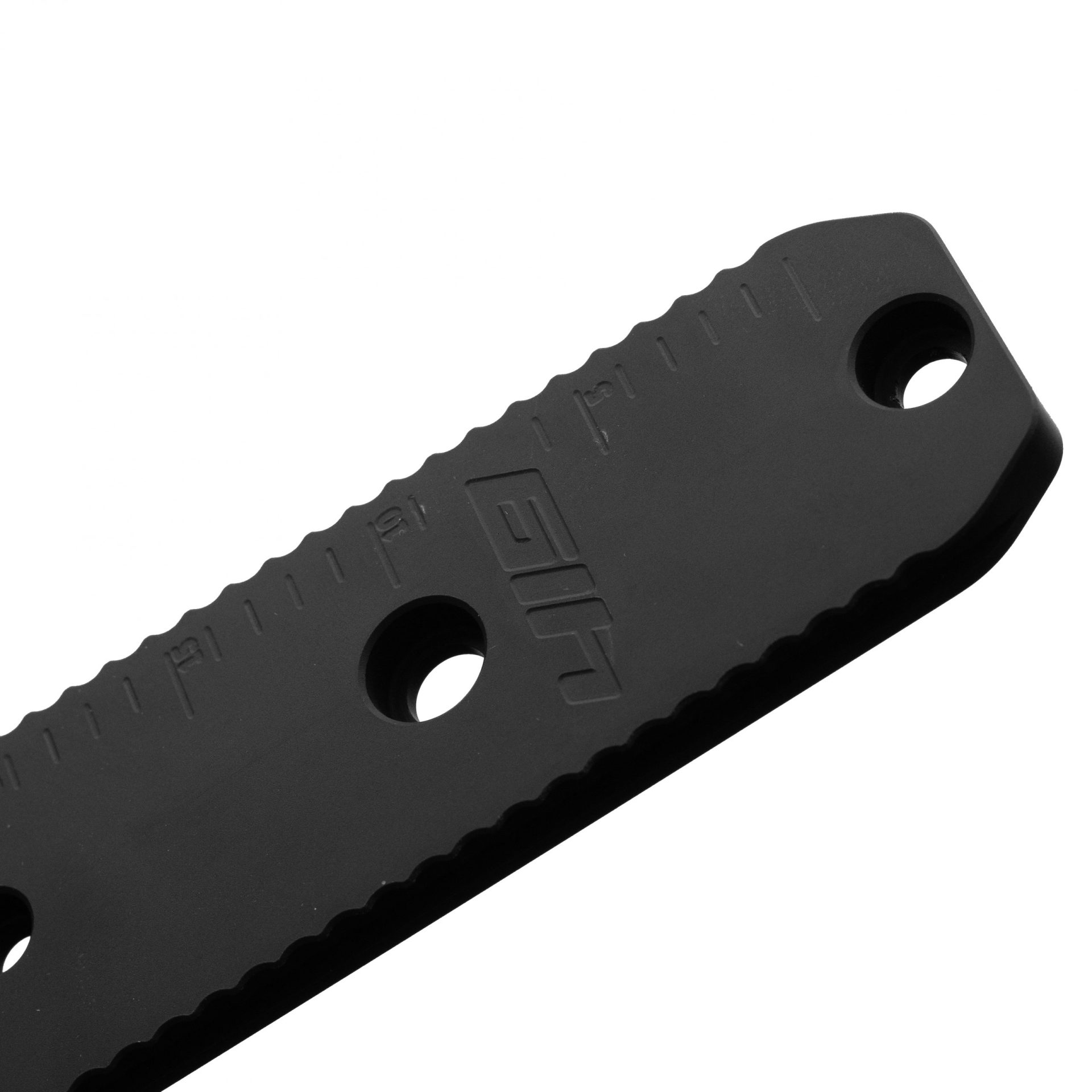

– No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way.
– While designed with Manners Composite Stocks in mind, this rail accommodates a multitude of rifle and stock configurations that have an accessible front action screw and some sort of front attachment point(s).
– Spacers for rifle stocks with non-flat forends are available HERE
– Designed to attach to the rifle up to 4 places for maximum strength and stability.
– Type 3 Hard Coat anodized for additional durability.
– Made from 6061-T6 Aluminum
– Made in-house here in the USA from USA sourced Aluminum on USA made CNCs
– Rail comes with extra Remington 700-style action screw of extended length to fit the rail to the front action screw attachment point. Some trimming will likely be required.
– A 3/4″ paddle bit and drill press may be required for installation of tee-nuts, depending on current rifle configuration. Tee nuts and hardware included.

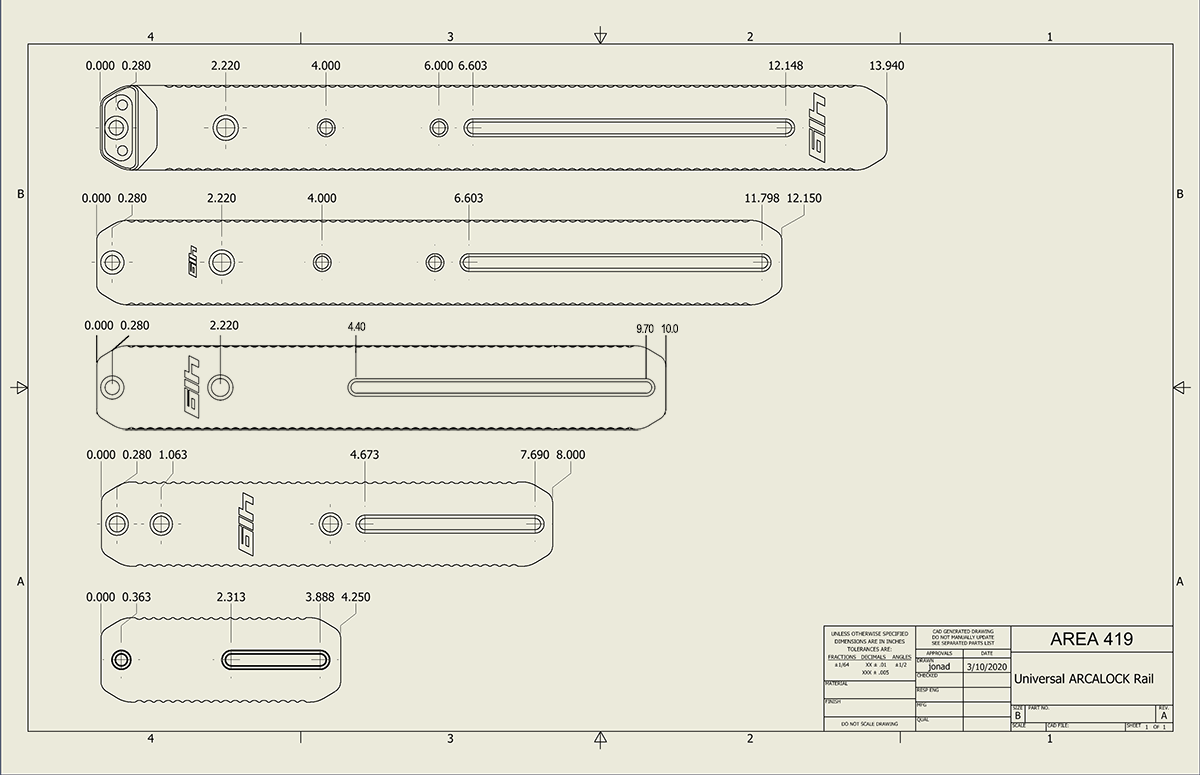

Rail Weights:
14″: 156.03 Grams
12″: 111.5 Grams
10″: 95.2 Grams
8″: 82.5 Grams
| Weight | .8 lbs |
|---|---|
| Dimensions | 16 × 2.5 × 2.5 in |
| Manufacturer | Area 419 |
163 reviews for ARCALOCK 12″ Universal Dovetail Rail
Related products
Chandler (verified owner) –
great fit for my CZ457
Joshua Powell (verified owner) –
This rail was just what I needed for my rifle. It is well build and attached to the stock like a rock, I don’t worry about it coming loose or falling off.
Scott Fields (verified owner) –
Easy process and quick delivery
Jon S. (verified owner) –
Great!!!
Carlos Ojeda (verified owner) –
Special offer was good at 80
Robert Y. (verified owner) –
Perfectly perfect
RYAN (verified owner) –
This is a well made product and easily mounted my to Bergara HMR stock with the no holes drilled, just modifying the provided action bolt for length. I think a 10″ would be a little short to mount without modifications to the stock and a 14″ will be quite long.
Dennis Wimbish (verified owner) –
This may be too long for some stocks unless you want the rail to extend 2” past the forend.
Quenton Chmelyk (verified owner) –
Rail is perfect but supplied bolts should be longer, impossibly hard to find longer bolts with the proper thread and head diameter.
Matthew A. (verified owner) –
Amazing product!! Rock solid
Randy H. (verified owner) –
Excellent quality came with everything in description and easy to install.
Steve S. (verified owner) –
I haven’t used it yet
Anonymous (verified owner) –
Best arca rail in the world and it’s not even close.
Danilo (verified owner) –
Purchased for MDT chassis. Would have worked if I had longer m-lock screws (hardware), otherwise excellent product.
Steve (verified owner) –
See above…….the best fit and ease of instillation!
Jeff S. (verified owner) –
excellent products and quality meets all expectations.
Anonymous (verified owner) –
Works well
Tod J. (verified owner) –
Awesome product, does exactly what I need for my Vudoo 360 / Foundation Centurion setup!
Douglas McKay (verified owner) –
Quality
Nicholas B. (verified owner) –

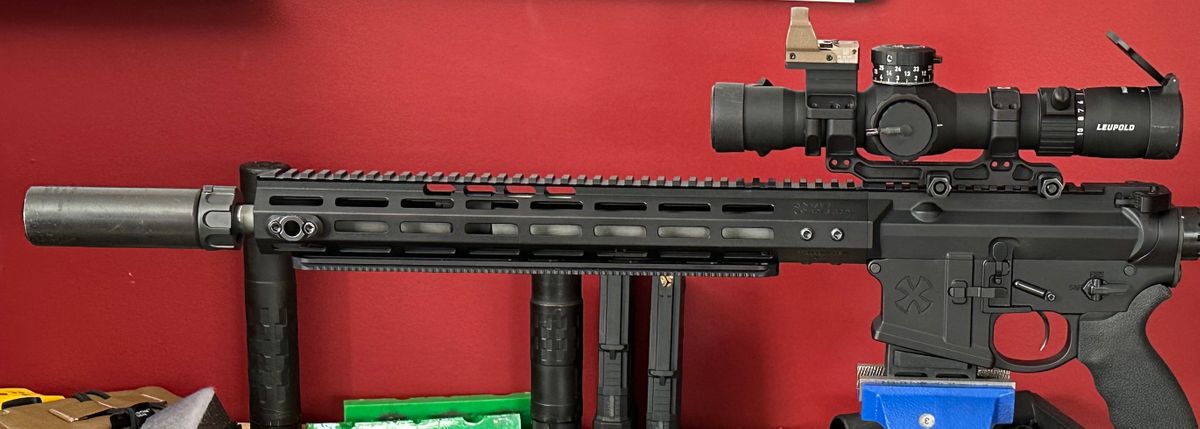

Perfect length for Noveske 16” recon. Says it needs 7 mlok slots, but probably 7.5, realistically 8.
Turner D. (verified owner) –
Great product and everything is included
Brian H. (verified owner) –
Great product, fit and worked as advertised.
Thomas Wallace (verified owner) –
Fits great on my Bergara B14R. Remove the sling studs and the supplied bolts thread into the sling studs holes. I trimmed the supplied action screw and it fit perfect
Steven (verified owner) –
Just what I was looking for, well made.
Hal (verified owner) –
Excellent product
Cory Hebert (verified owner) –
Cut and dry product. Simple in its design, which is always a good thing when it comes to engineering, and effective at performing the task it was built for. After coming from picatinny style accessory mounts, this Arca system is a great new option for mounting accessories. Mine is used for a bipod on my McMillan A3 stock. Area 419 seems to be a good company to do business with and their products have been sound so far.
ray mendenhall (verified owner) –
excellent addition to my rifle
Scott F. (verified owner) –
Do not have anything to put this on yet, Wanted both to see what I liked the best.
Earl Buck (verified owner) –
Have 4 of the rails on rifles work great
Bennie Cooley (verified owner) –
Great Product
David T Bud LaRoche (verified owner) –
Have 4 – 12 inch rails now. Fit finish fiction are top tier.
Zachary S. (verified owner) –
This rail is exactly what I wanted for my HMR Pro. It functions and fits perfectly. Feels very well made.
Jeremy Patterson (verified owner) –
Awesome product
Peter Russell (verified owner) –
Great
Robert A. (verified owner) –
see above
David R. (verified owner) –
I bought this rail to put on the Bergara B14R stock (22LR for PRS type matches). Luckily, the screws included with the rail are the correct thread pitch and length to attach the rail after removing the front two sling swivels. Very convenient!
Richard Leavitt (verified owner) –
Nice product 😎
Frederick (verified owner) –
I had to shorten the action screw that came with the rail to fit my rifle.
Miranda A. (verified owner) –
super cool. works perfect
rick j (verified owner) –
nice bipod w/ACRA clamp
David T Bud LaRoche (verified owner) –
Fits great on our Manners MCS-T2GAP stock. Fits snuck and easy to install
Bryan S. (verified owner) –
Quality of the rail is very nice. It’s a little bit of hassle to mount on B14 HMR. I installed one “T” nut and used both sling mounts. In the end it’s very solid and a nice unit. Just watch the installation video and be prepared to do some light modifications to your factory stock.
Steven H. (verified owner) –
Works as advertised and fits my Bergara B14r perfectly. Easy to follow instructions for installation.
Anonymous (verified owner) –
Very good product. I have 419 arca on every rifle not in chassis
Joe Gaines (verified owner) –
Top notch as always!
Greg R Mosen (verified owner) –
great rail system I have them on all 4 of my compition rifles.
Jennifer Morgan (verified owner) –
Super prompt service on a fine quality product ( in this toolmaker’s humble opinion). And geez, even the packaging was so nice I kinda didn’t want to throw it away.
Dave Thompson (verified owner) –
Dave Thompson
Andrew Binion (verified owner) –
Perfect no flaws
Maurice Treadwell (verified owner) –
Works perfect for Springfield waypoints
Bennie Cooley (verified owner) –
Great product…
Charles McClung (verified owner) –
Perfect fit on my McMillan A3/5
Richard Liepins (verified owner) –
Quality piece, works like a champ with my Area 419 locking clamp. Rock solid
Jose Eduardo Prieto (verified owner) –
Great product!!
Frank M. (verified owner) –
Great workmanship
Roy Joffrion (verified owner) –
So worth the $$
Stuart Kral (verified owner) –
Innovative and manufacturing in United States.
Richard Ritterbeck (verified owner) –
Quality product, did have to buy different MLok screws, because some I had didn’t fit.
Jared B. (verified owner) –
Great product always from Area419
Kevin P. (verified owner) –
Excellent quality and fitment as always
Dan Blake (verified owner) –
The rail is solid as a rock mounted to my tripod. Looks fantastic as well.
mike kneale (verified owner) –
Arca Rail is outstanding. Provides a lot of versatility.
Anthony Pearce (verified owner) –
Flat n black
Elijah Graf (verified owner) –
I’ve never been happier to be railed
Travis (verified owner) –
Quick and easy mounting to my KRG Bravo with m-lok hardware.
David White (verified owner) –
big thumbs up
Michael G. (verified owner) –
Mounted this on my CZ457 Precision Chassis. Mounted up very easily and looks great. Hangs off the front about 3/4” which is exactly what I was looking for. Another solid product from Area 419!
charles s. (verified owner) –
Product works as described.
David S. (verified owner) –
Have multiple products from 419 5/5 as always
Gary K. (verified owner) –
Looks solid but I haven’t mounted it yet. I wanted it available if end up getting a bipod
Kelvin (verified owner) –
Amazing company with amazing products
Al M. (verified owner) –
Great packaging
Cody (verified owner) –
Well built and fits great!
Robert T. (verified owner) –
Best arca there is.
Tyson H. (verified owner) –
Fit & finish was spot on as always thanks for another great product.
Justin (verified owner) –
Very well built. High quality finish and straight forward installation. Will be buying more products in the near future.
Lance Cordle (verified owner) –
The quality of the rail is great! I really wish there was an option to get longer bolts to go into the existing sling stud holes in my stock. I needed to buy longer bolts and modify the head to fit into the slot on the rail. I’m looking forward to using this on my 338 Edge for many seasons to come.
Zachary Hughes (verified owner) –
Fits grate vary happy
Alex A. (verified owner) –
The universal Arca rail is perfect and is a real upgrade to my Bergara B14r. Looking forward to my next match.
Anonymous (verified owner) –
Quality craftsmanship! A++++
Evan (verified owner) –
Bought the rail and barricade stop. Super easy to install and looks great on my Bergara HMR.
William (verified owner) –
Love the Arca rail system, you can mount anything.
Jay Klaverweiden (verified owner) –
Perfect fit and function.
John (verified owner) –
Excellent machining and finish, works as expected.
Fred (verified owner) –
Great product
Dustin (verified owner) –
Just as I hoped for
Craig (verified owner) –
Perfect fit on my XLR chassis, gives me 12 inches of complete bipod adjustability or quick detachment if using a bag only
MARIUS MOCOFAN (verified owner) –
wish was 1 inch shorter
Richard Leavitt (verified owner) –
Good to go
Donavon Johnson (verified owner) –
Works great.
Anonymous (verified owner) –
Nice fit and finish
Brian Sebastian (verified owner) –
Couldn’t resist sanding the bottom of my CZ flat for a better fit…. Didn’t use the forward action screw though, just drilled a third hole for an extra t nut so I can remove the action and don’t need to find a new screw….
Dallas S. (verified owner) –
Amazing quality
Jeff Rowe (verified owner) –
I love the Arca rail and Accu-tac bipods
John Shade (verified owner) –
3rd Area 419 rail I’ve bought.
Randy R. (verified owner) –
It took about 10 min to install the rail and about an hour to cut and grind the action screw to the correct length. Recommed buying extra action screws with a head that sits flush to the rail. The included one protrudes well above the rail and will not sit flush. If you install this on a chassis you will need mlok screws and nuts which are not included. RRS sells screws with a flat head that will sit flush with the rail. The ones Area 419 sells on their website do not sit flush with the rail.
Terry L. (verified owner) –
Excellent product! Expertly designed item!
Mike Kany (verified owner) –
Good quality stuff!
Anonymous (verified owner) –
Great
Hector M. (verified owner) –
arca rail is great quality just wish that the t bolt screws were a bit longer, supplied ones were not long enough for my application . All in all very satisfied with product
Art (verified owner) –
Excellent quality
Marcus Harrison (verified owner) –
Rail works great.
Seth Dyer (verified owner) –
I can’t beleive how light it is. I put it on a Christensens MPR Chassis and I can’t really feel it.
CORY LAWRENCE (verified owner) –
Well made
John T. (verified owner) –
Very well made rail. Mounted it on a Bergara BMR.22 rifle to shoot NRL22 matches
Joshua L. (verified owner) –
Great fit and super easy to mount.
Stephen L. (verified owner) –
I’ve never seen 12″ before in my hand. Was pretty impressive
Sean S. (verified owner) –
Easily my favorite ARCA rail on the market. Absolutely zero slip, even when really loading into a barricade etc.
Gregory Rhame (verified owner) –
Very well made, fit and finish are excellent.
Anthony (verified owner) –
Top quality
Anonymous (verified owner) –
Easy installation, perfect fit
Paulo Santos (verified owner) –
Purchased the 12” Universal with the ARCALOCK Clamp. The Universal Rail fits perfect on my 15” Midwest Industries G4M Handguard. I was able to use 5 MLOK nuts to secure the Universal Rail for a super tight fit.
Cole F. (verified owner) –
100%
Anonymous (verified owner) –
These are the best rails in the market, be sure to replace any replicas you may have purchased by accident prior.
Joseph M. (verified owner) –
Blazing fast shipment after order. Top quality parts fit and finish 10/10.
Nathan Dykstra (verified owner) –
Awesome rail.
Jim I. (verified owner) –
The fit and finish and ease of use are great! Highly recommend
Anonymous (verified owner) –
Installed easier than I thought. I wish the hardware that came with it was not a torx head. Maybe that’s more common than a 3/16 head SHCS on some actions? I wanted to keep both hardware heads the same on the action so bought a 1/4-28 SHCS
Jeffrey Zemolong (verified owner) –
Love Them
richard (verified owner) –
Excellent quality fit and finish. Great addition to my rifle.
Chris S. (verified owner) –
Great Products easy to install.
Matthew A. (verified owner) –
Mounted up perfectly on my B14 HMR after trimming the provided screw. Makes a huge difference. Awesome addition to my rifle.
David Reed (verified owner) –
Very nice rail, functions great, price is high
Justin (verified owner) –
Great Product. Nicely packaged.
Richard (verified owner) –
You have to cut a bedding screw to fit. I used a Dremel tool which worked well.
David B. (verified owner) –
I called to ensure this was the right item to fit my rifle…perfect fit 1st time…great job 419 Team! !
Roland van Zuijlen (verified owner) –
Works great with the arca lock!
Thomas sellers (verified owner) –
Awesome
Manuel Molina (verified owner) –
The rail to have
SPENCER (verified owner) –
Installed on my MDT XRS to use with my tripod on prairie dog hunts and to dip my finger into practicing for NRL/ PRS. Easy install and I like the ratcheting arcalock. Plenty of uses for fences, fence posts, barricades etc. Great product all around.
James B. (verified owner) –
Very solid piece.
Lance Watkins (verified owner) –
Great piece of equipment. Bought to put on my son’s PRS rifle. Installed in about 5 min.
BRIAN PUTNEY (verified owner) –
👍
Paul Kaelin (verified owner) –
Just what I was looking for
Dmitriy (verified owner) –
Excellent quality
Eric C. (verified owner) –
Excellent quality as usual. I wish they made a kit to attach to an Anschultz rail.
RICHARD B. (verified owner) –
WORKED PERFECTLY.
Richard Fiore (verified owner) –
A little pricey but works great
Anonymous (verified owner) –
Bought this for the new CZ 457 MTR with the Manners stock. Easy to install. Turned out awesome! Way better system running this for a bipod then the factory swivel sling stud!
Bradley Larson (verified owner) –
Very easy to install!
Nigel McGrath (verified owner) –
Excellent product, perfectly finished, as always.
abel posada (verified owner) –
Bolted on to my BCM KMR handguard, looking forward to running in matches!
Manuel Molina (verified owner) –
I wish I could rate it a 10. Very pleased
Landen J. (verified owner) –
Once setup, the clamp and rail is very solid. The clamp moves freely along the rail and locks in with the 419 rail. The rail and clamp adds extra versatility to the system. Install was easy for both the rail and clamp. I’ve already recommended it to a few guys.
Dylan Anderson (verified owner) –
Atlas + ARCA = precision!
Dominique STURM (verified owner) –
Great rail
Chris Davison (verified owner) –
Love the arca rail. Put it on my new bergera b14 22lr. Now able to us my tripod and bipod that already have the area 419 mount. Great product. Did have to go to the hardware store for a different size action bolt. No big deal.
Andrew Coil (verified owner) –
Pricey, but excellent product!
Joseph Mangano (verified owner) –
Fit Grayboe Ridgeback stock perfectly excellent quality work
Clint (verified owner) –
Perfect fit
Dylan Speaks (verified owner) –
Have not used this yet.
Anonymous (verified owner) –
Incredible craftmanship! Installed on a Sig 716. I should have bought it a long time ago. Finally have the versatility I’ve always wanted. Full cantilever picture shown on the tripod is with a full mag. Its rock solid, strengthened my handguard. I Couldn’t be happier.
Brandon B. (verified owner) –
Very well built !
Michael (verified owner) –
I was impressed with quality of the ARCALOCK rail and how easily it was to fit to my rifle stock,
Brad West (verified owner) –
Fantastic Product!!!!
Aaron Wichman (verified owner) –
Awesome product
Nick M. (verified owner) –
I like the scalloping it keeps thing in place even if they come loose a little
Joshua Thomas (verified owner) –
Best rail out there. Comes in good packaging with good hardware. Worth the $$
MARK (verified owner) –
Great
Mark Evans (verified owner) –
Great product!!!!!
Anonymous (verified owner) –
Awesome rail
Jeff (verified owner) –
Works great on a cz455 tacticool. Another great product from a419.
Bill Bakopoulos (verified owner) –
I purchased this rail to go on my Tikka Tac A1 in 6.5 Creedmoor and it fits perfectly! I will say that I’m on my 2nd barrel and my current tube is a 26-inch Benchmark from PVA in M24 contour. If you own a Tac A1, be careful installing these rails as the m-lok screws may actually touch the barrel as you’re doing the installation. If they do contact the barrel or are too close for comfort, they may require some work to shorten them.
I have not run this setup in any matches yet, however I have tested the rifle platform with the new arcarail on some of my practice barricades at home. With the barricade block and the front clamp Harris bipod adjustment my rifle locks onto barricades rock solid. If you compete in PRS, the arcalock rail system is an invaluable tool: move the bipod extremely close to the mag well for short obstacles, having a flat bottom to the hand-guard, the ability to clamp rock solid onto PRS style barricades and surfaces. What are you waiting for?!
